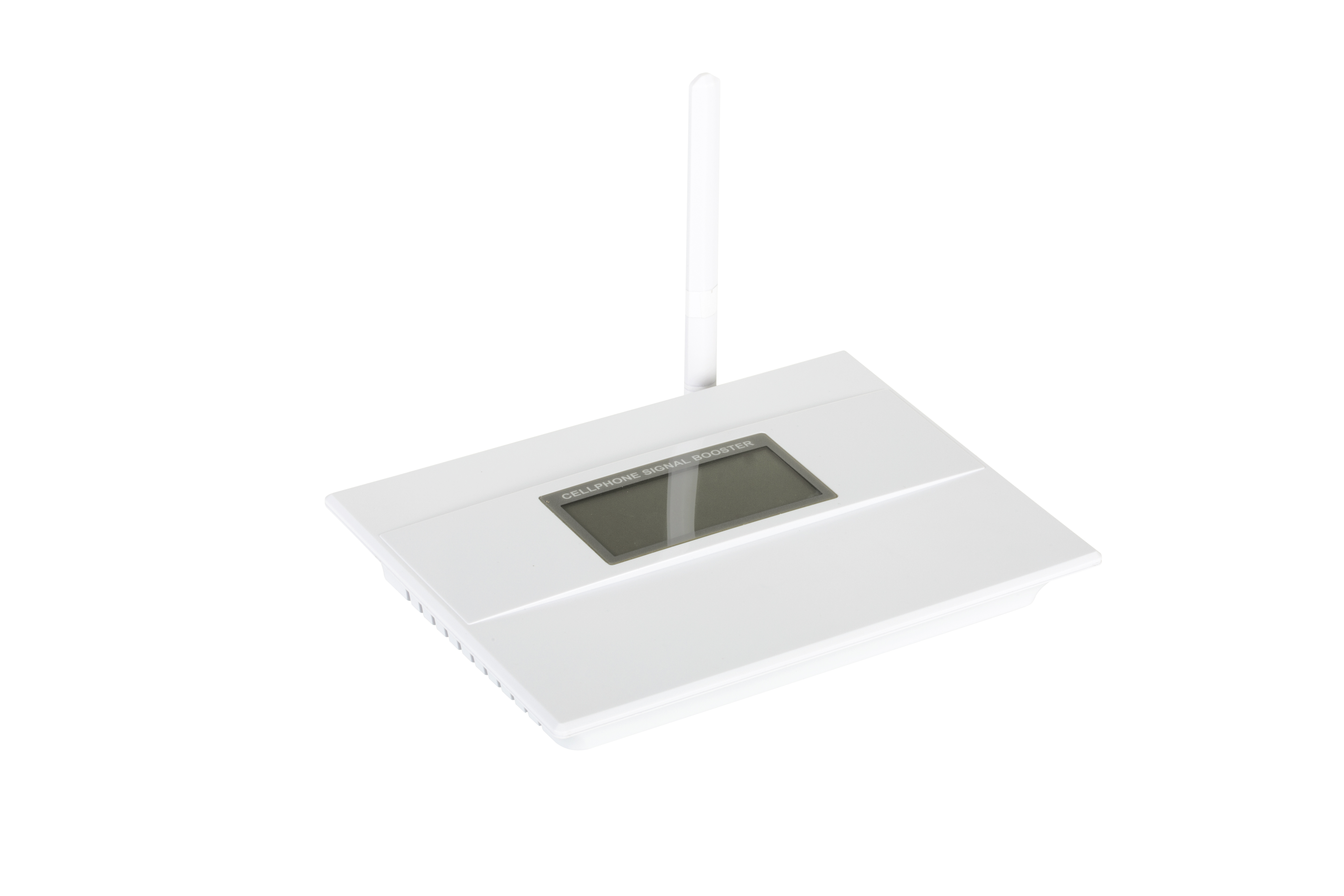

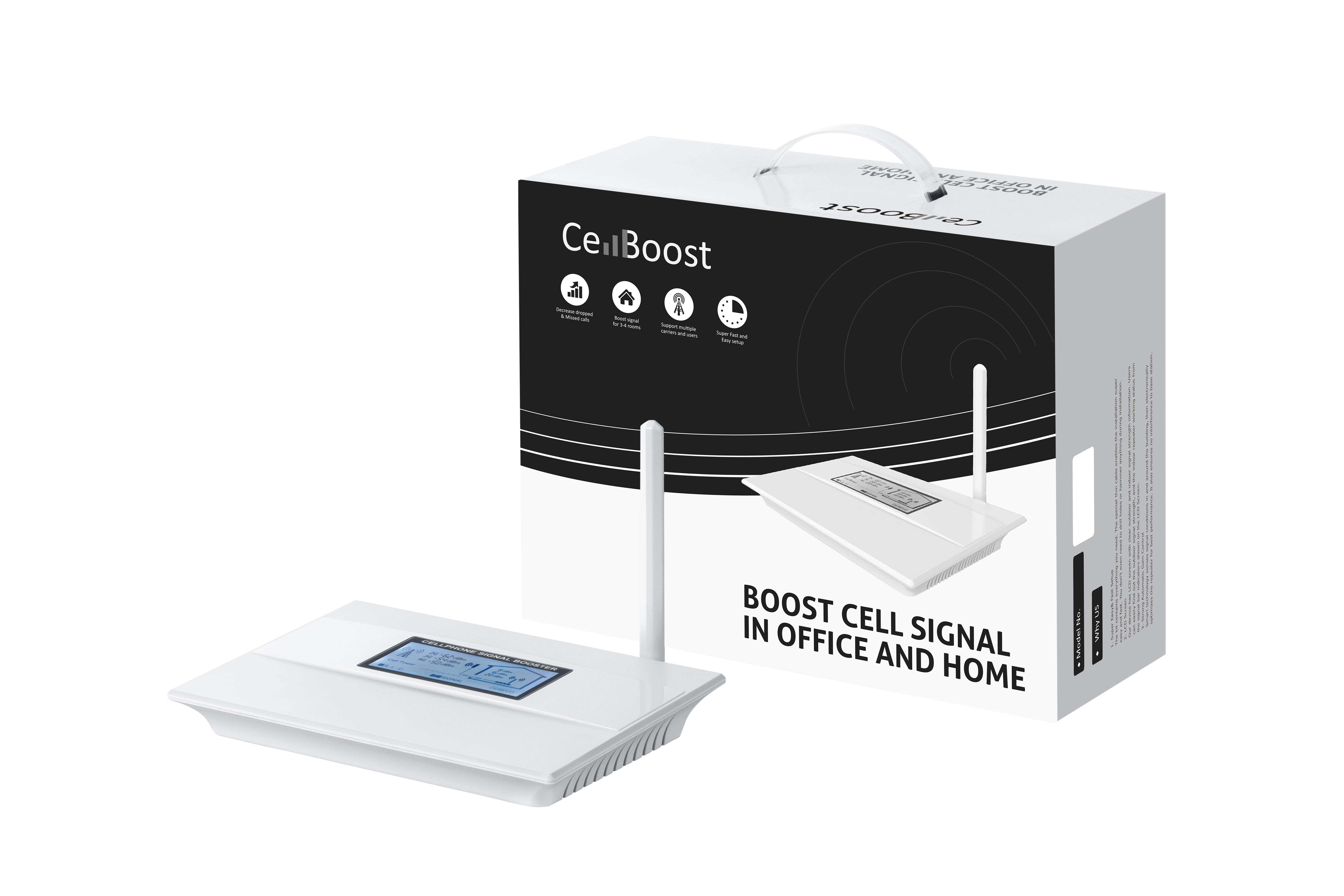

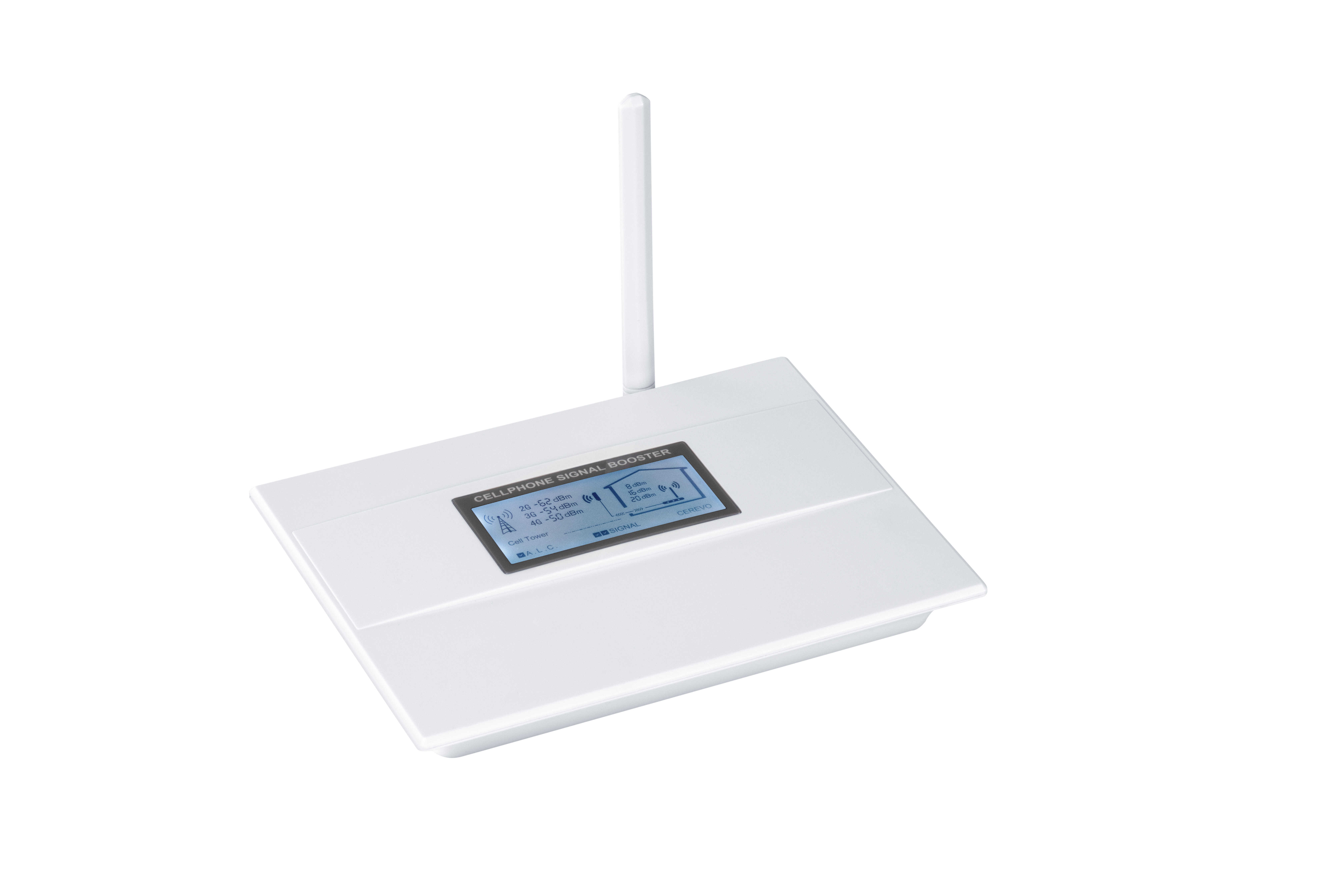

UC-H200
The UC-H200 is a mid-range signal booster ideal for larger homes with multiple rooms. Supporting tri-band 800/1800/2100MHz frequencies, it covers up to 400 sqm with 65dB gain. Perfect for families who need reliable coverage across multiple floors and rooms.
Key Features
- Tri-band support for multiple carriers
- Smart AGC for stable signal output
- Multi-room coverage with additional indoor antennas
- Energy-efficient standby mode
- Compact wall-mountable design
Technical Specifications
| Coverage Area | Up to 400 sqm |
| Uplink Gain | 65dB |
| Frequency Bands | 800 / 1800 / 2100 MHz |
| Input Power | AC 100-240V |
| Noise Figure | ≤ 5dB |
| Dimensions | 280 x 180 x 40 mm |
| Weight | 1.2 kg |
| Operating Temp | -10°C to +55°C |
Applications
Medium to large homes
Multi-story residences
Home offices
Small farmhouses
Interested in This Product?
Contact us for pricing, availability, and distributor partnership opportunities.
Request a Quote
